| Deflector Line |
 |

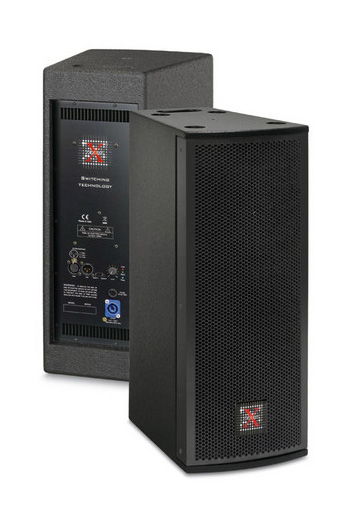

| XTD88/A |
|
| System configuration | active loudspeaker system |  | | BI-Amplified (RMS) | 500 W @8 Ohm - class D digital |  | | Frequency response (-3 dB) | 65÷20k Hz |  | | Peak SPL (@1 m) | 129 dB |  | | Coverage Angle (-6 dB) | 90° horizontal, 40° vertical |  | | Power supply | switching technology |  | | AC Voltage | 115/230 V ~ 45/65 Hz ± 10% |  | | Input | max +10 dBu - XLR |  | | DSP on board | 24 bit/96 kHz (2 sel. presets) |  | | Cabinet | birch plywood |  | | Dimensions (WxHxD) | 270x685x400 mm |  | | Net weight (Kg) | 20
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
The Deflector Line active loudspeaker systems (and their related subwoofers), for which remote control is not planned, have the use of 4 presets that can be directly selected by the customer from the on board amplifier (N.B. there are 2 presets for mod. XTD88/A); therefore, the audio parameters can be modified simply by setting various combinations of the switches on the rear panel.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| CODE | N. PIECES | DESCRIPTION | | SB815-16 | 2 | 8” Neodymium Cone Loudspeaker
Impedance: 16 Ohm
RMS Power: 250 W
Sensitivity (1W@1m): 94 dB
Max SPL (cont.): 118 dB - Weight: 1.8 Kg |  | | | | CDB21 | 1 | 1” Mylar HF Driver
Impedance: 8 Ohm
RMS Power: 50 W
Sensitivity (1W@1m): 106 dB
Max SPL (cont.): 123 dB - Weight: 0.9 Kg | | | | | PH1812P | 1 | AWSHTM (Acoustic Isophase Wave Duct) - Weight: 1 Kg | | | | | CDB21-RK | / | Recon Kit Driver for CDB21 | | | |
|
|
|
|
|
|
|
|
