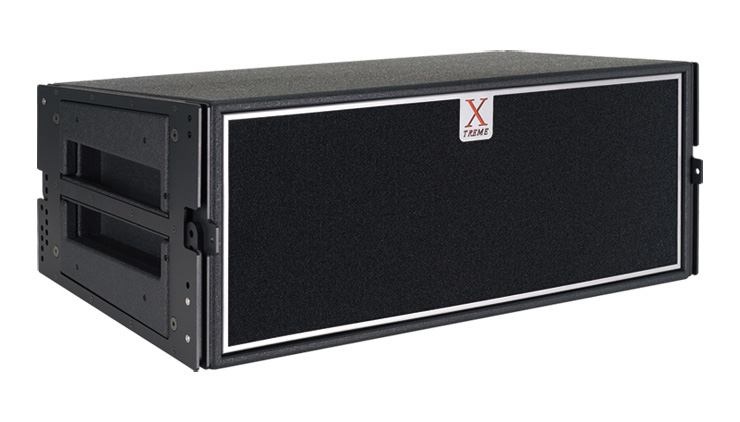

Click to enlarge
Linear Source Array
XTLSA
System configuration
3-way line array module
Power handling RMS
900 W
Frequency response (-3 dB)
65÷18k Hz
Peak SPL (@1 m)
137 dB
Coverage Angle (-6 dB)
120° horizontal
Nominal impedance (bi-amp)
8 (LF), 8 (MF+HF) Ohm
Nominal impedance (tri-amp)
8 (LF), 8 (MF), 8 (HF) Ohm
Transducers
LF 1x12" neodymium
MF 2x6" neodymium
HF 2x1" titanium
Input connectors
2xNL8FC Speakon
Cabinet
birch plywood
Dimensions (WxHxD)
1044x392x550 mm
Net weight (Kg)
61
Datasheet
Download X-Treme XTLSA Datasheet [PDF] (770 KB)
3D drawings
Download X-Treme XTLSA.dwg [ZIP] (974 KB)
Download X-Treme XTLSA render [PNG] (186 KB)
Speaker presets
Download LSA Presets for XTDP26 [ZIP] (63 KB)
Download LSA Preset Tables [PDF] (106 KB)
EASE data
Download XTLSA for EASE [ZIP] (114 KB)
Spare Parts
CODE
N. PIECES
DESCRIPTION
SB12N67-8
1
12” Neodymium Cone Loudspeaker
Impedance: 8 Ohm
Power RMS: 400 W
Sensitivity (1W@1m): 100 dB
Max SPL (cont.): 126 dB - Weight: 4 Kg
SC203967-16
2
6” Neodymium Cone Loudspeaker
Impedance: 16 Ohm
Power RMS: 100 W
Sensitivity (1W@1m): 99 dB
Max SPL (cont.): 119 dB - Weight: 1.1 Kg
CSMB201
1
2x1” Titanium Narrow Beam Double Horn
Impedance: 2x16 Ohm
Power RMS: 2x80 W
Sensitivity (1W@1m): 2x115 dB
Max SPL (cont.): 2x134 dB - Weight: 2.3 Kg
CSMB201-RK
/
Recon Kit Driver per CSMB201
Price List
To obtain a price list of the X-Treme catalogue products, just compile the form below or contact the sales office at the following address:
- X-Treme Sales Department -
Via Monti Urali, 33
42100 Reggio Emilia - Italy -
Tel.: +39 0522 557735
Fax: +39 0522 391268
E-mail:
sales@x-tremeaudio.com
